72013 || 120-volt Half-Size Countertop Warmer
New compact Vollrath® countertop warmer packs all of the convenience and versatility into half the size.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

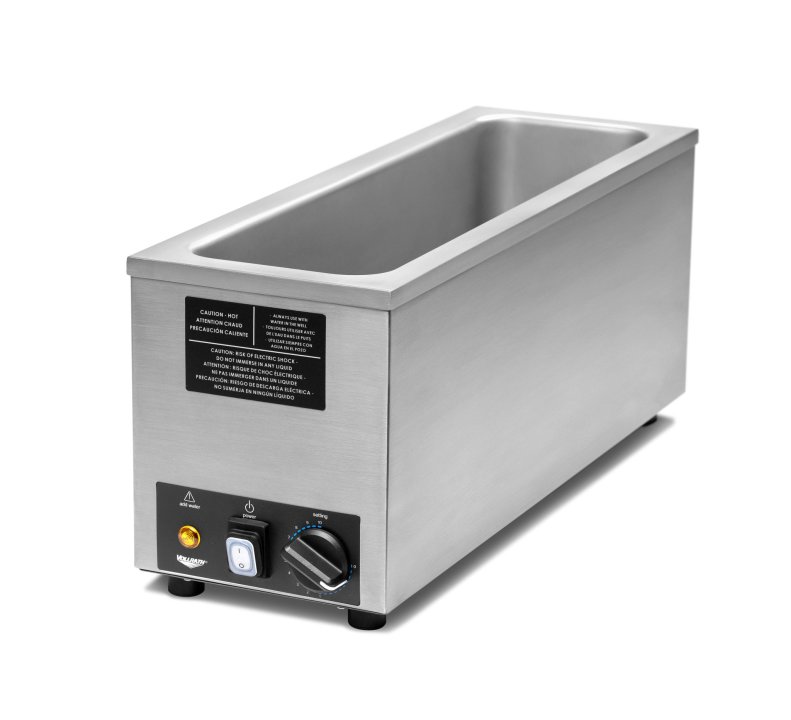

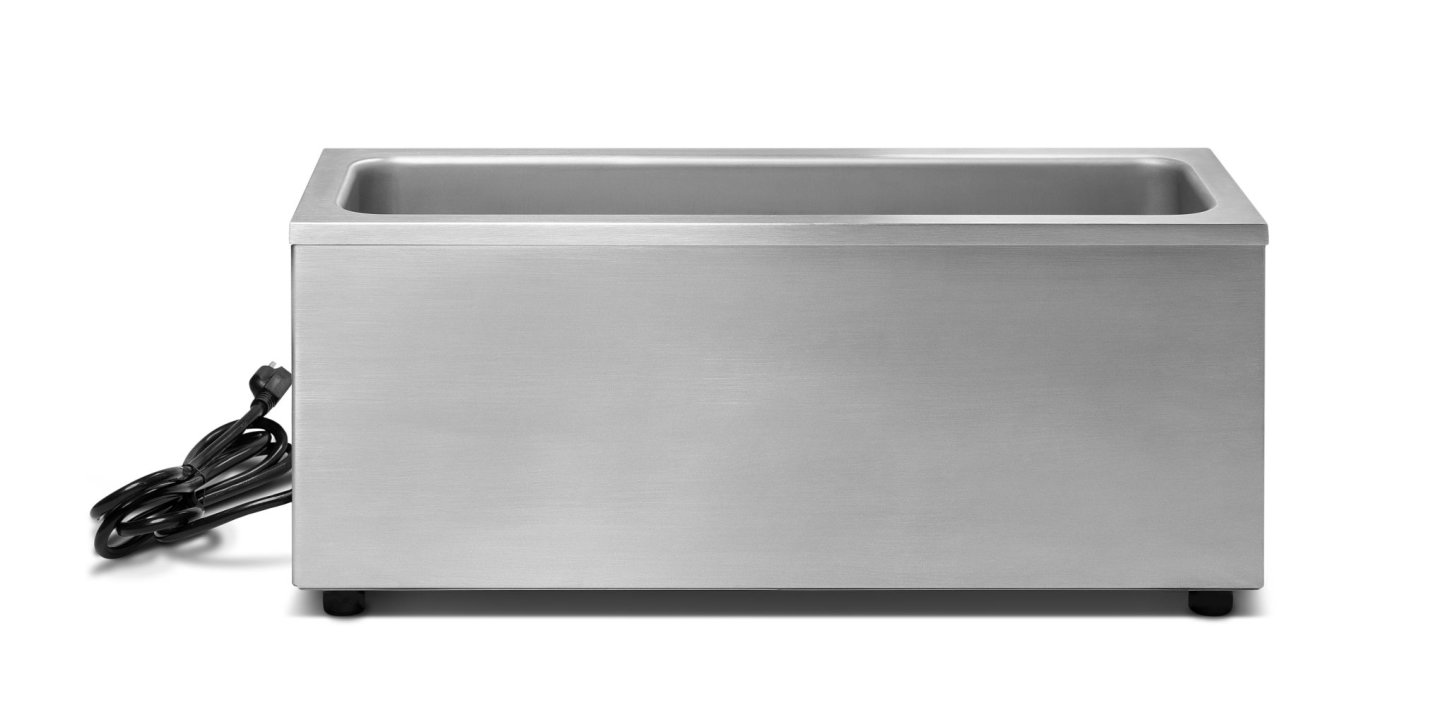

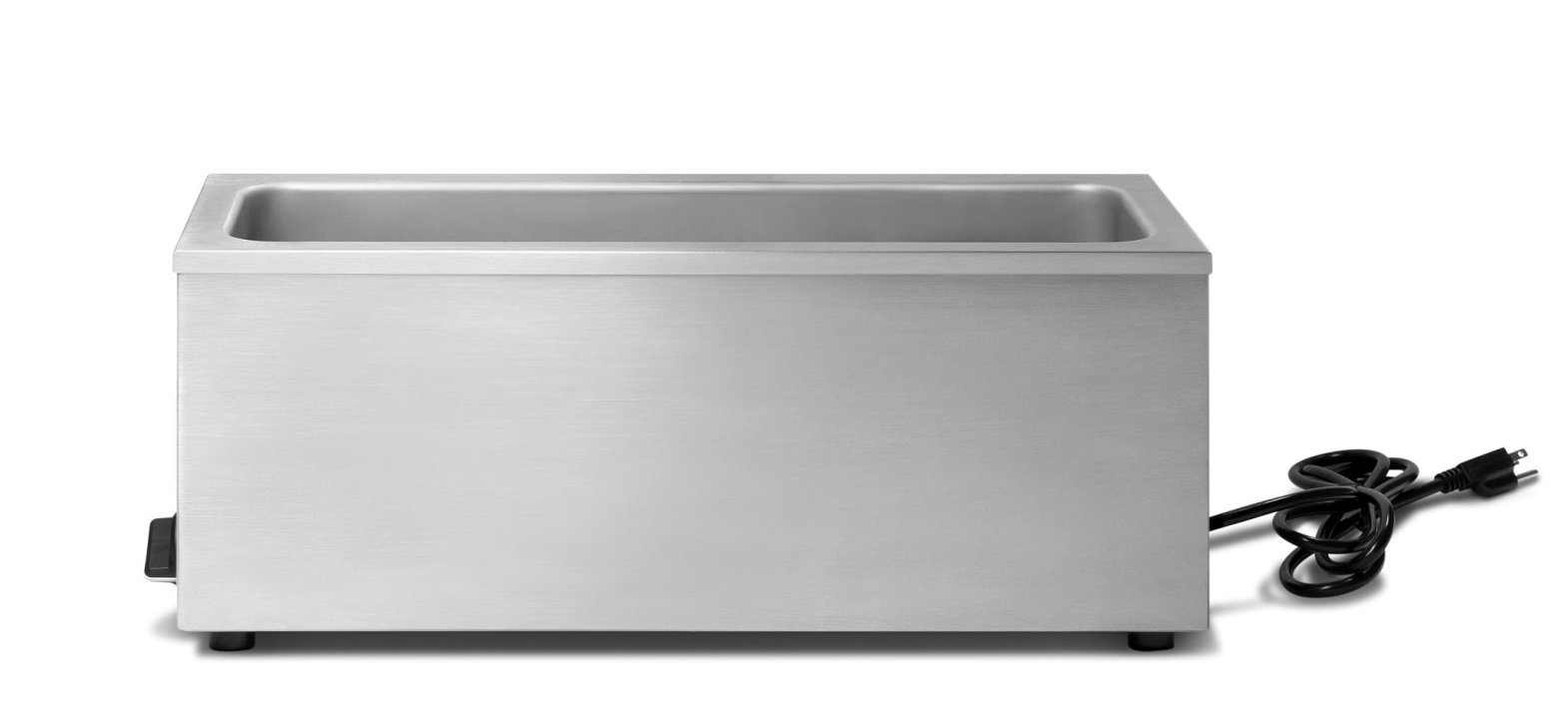

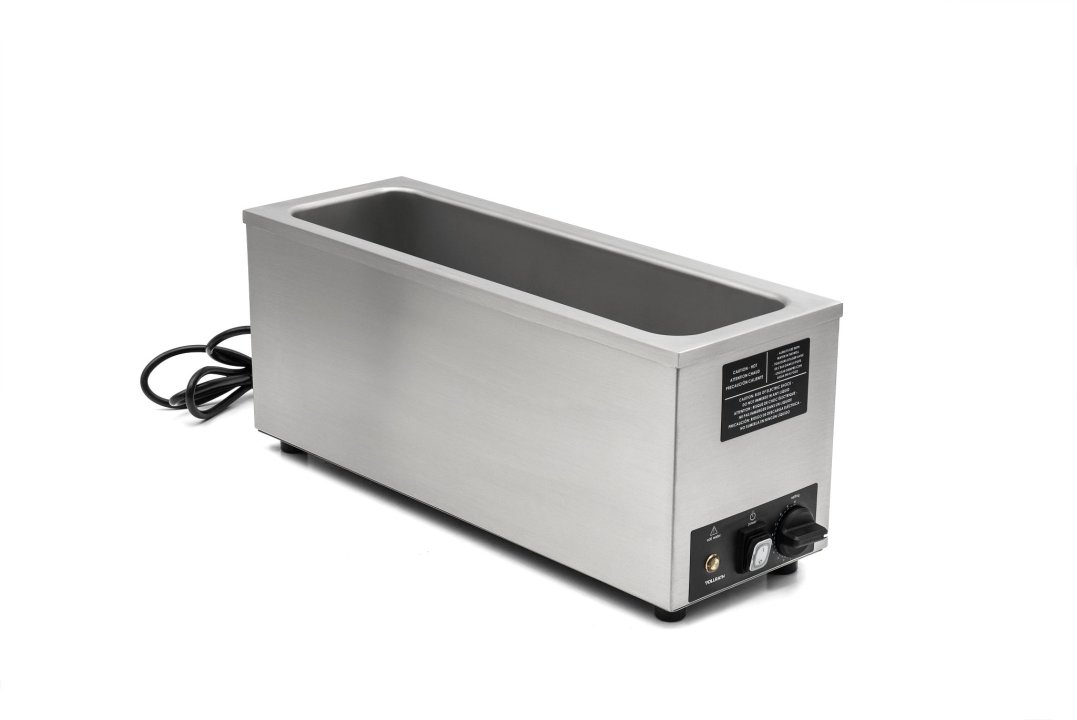

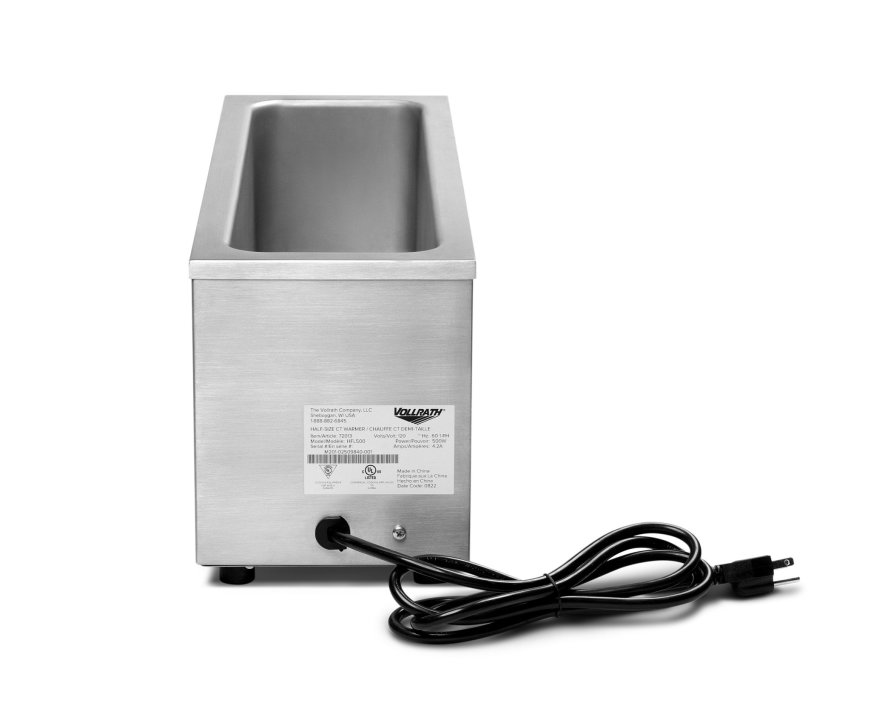

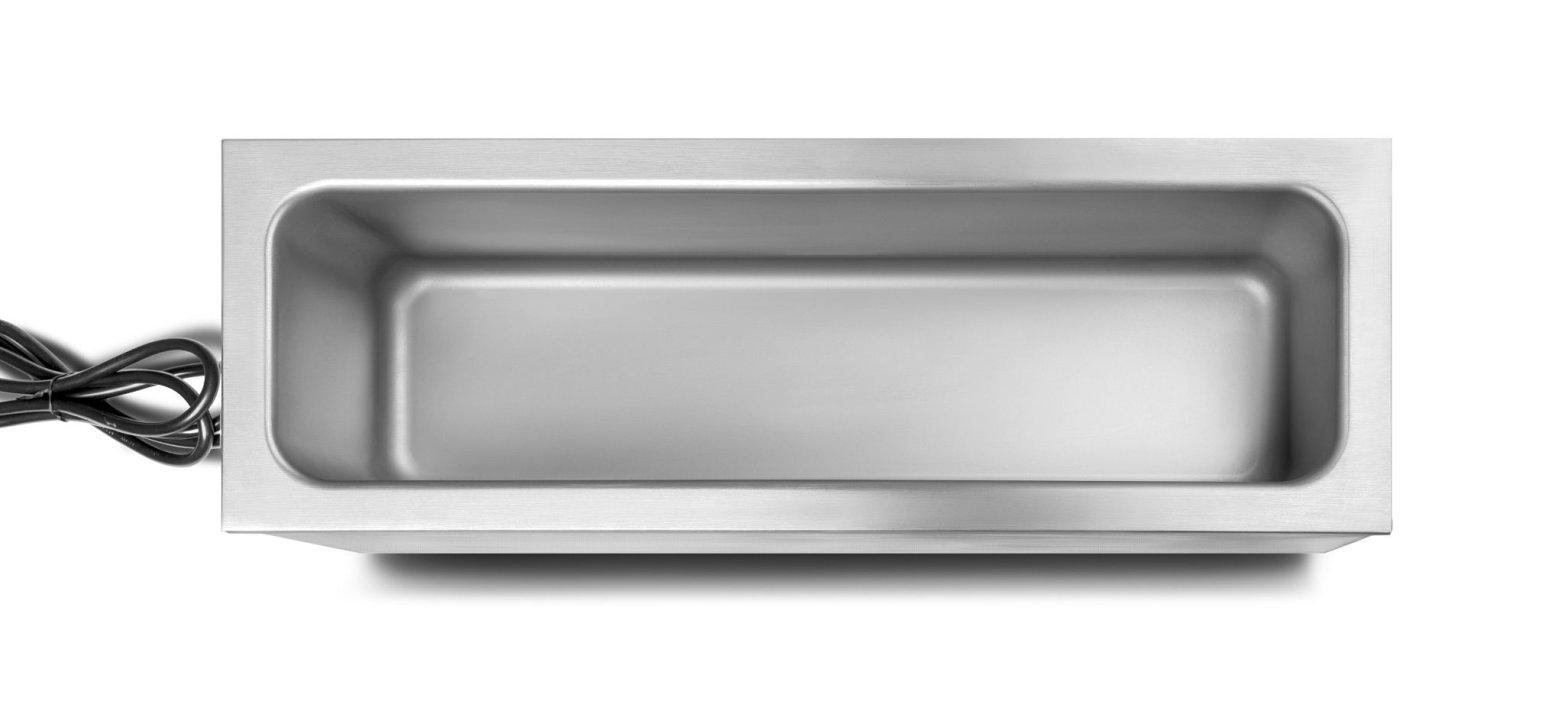

120-volt Half-Size Long Countertop Warmer
New compact Vollrath® countertop warmer packs all of the convenience and versatility into half the size. Its stainless steel well keeps foods at optimal temperature for freshness and safety, no matter what size pans you use — half-size, fourth-size or sixth-size pans up to 6 inches deep. And thanks to 10 user-adjustable thermostatic settings, ranging from approximately 104°F to 212°F, you can depend on temperature consistency and power efficiency.
Accommodates a variety of fractional pans for versatility
Durable stainless steel well is easy to clean
Front-access dial makes heat adjustment easy
Indicator light notifies users when well needs water
Non-skid rubber feet help prevent countertop sliding
6-foot power cord allows safe and user-friendly placement
Meets NSF4 Performance Standards for hot food holding
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HFL500 |
| UPC | 029419458912 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 7.6 |
| (WW) Well Width (IN) | 5.5 |
| (D) Depth (IN) | 22 |
| (D2) Secondary Depth (IN) | 19.9 |
| (WD) Well Depth (IN) | 19.9 |
| (H) Height (IN) | 9.3 |
| (H2) Secondary Height (IN) | 6.5 |
| (WH) Well Height (IN) | 6.5 |
| (W) Width (CM) | 19.2 |
| (WW) Well Width (CM) | 13.9 |
| (D) Depth (CM) | 55.9 |
| (WD) Well Depth (CM) | 50.4 |
| (H) Height (CM) | 23.7 |
| (H2) Secondary Height (CM) | 16.5 |
| (WH) Well Height (CM) | 16.5 |
Electrical
| Name | Value |
|---|---|
| Amps | 4.2 |
| Plug | 5-15P |
| Voltage | 120 |
| Watts | 500 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| RECT. POWER SWITCH - 120V | 352773-1 | $13.50 |
| ELEMENT COVER WELD ASSEMBLY | 354080-1 | $82.50 |
| Pilot Light 110V - Amber LH580 | 354073-1 | $28.80 |
| STRAIN RELIEF - HEYCO | 352888-1 | $28.80 |
| INSULATION - HALF-SIZE WARMER | 354079-1 | $39.60 |
| HEATING ELEMENT - HFL500 120V | 354074-1 | $52.30 |
| DISC THERMOSTAT - 365F CRA | 354081-1 | $36.00 |
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $10.40 |
| Control Knob | 351788-06-1 | $7.60 |
| OVERLAY - HFL500 CATALOG | 354072-1 | $47.60 |
| DISC THERMOSTAT - 450F ORA | 354075-1 | $25.20 |
| HEAT SINK - HFL500 | 354186-1 | $30.50 |
| DISC THERMOSTAT - 475F ORA | 354076-1 | $25.20 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| CAUTION LABEL - HFL500 | 354187-1 | $9.60 |
Product Downloads
Difference between a Warmer and Rethermalizer
Click below to view an article describing the difference between a warmer and a rethermalizer.
