40794
Discontinued120-volt Cayenne® sandwich press with panini-style, cast-iron plates
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
The Vollrath® Cayenne sandwich press quickly and evenly cooks a variety of food items. Made out of heavy-duty cast iron to maintain heat, both the top and bottom plates have grooves that create mouthwatering grill lines. This sandwich press has a high power output and is built to last. Inset heating element channels create greater heating efficiency, and the stainless steel exterior gives everything a smooth finish.
- Excellent choice for sandwiches, paninis, meats, vegetables and more
- Ribbed top and bottom plates create panini-style presentation
- Adjustable handle changes press height, so you can evenly cook any order
- Brush included to make cleaning easy and efficient
- 120°F to 470°F temperature range
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TSI7001 |
| UPC | 029419719891 |

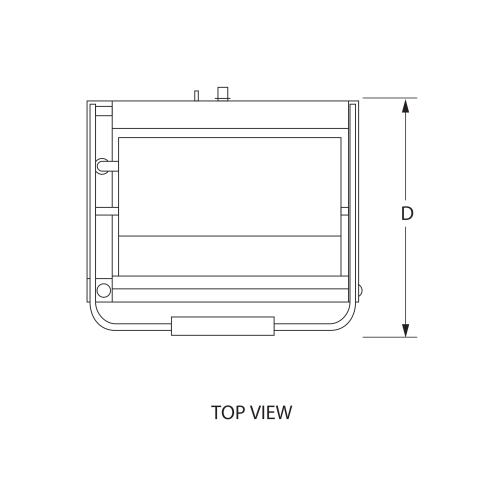

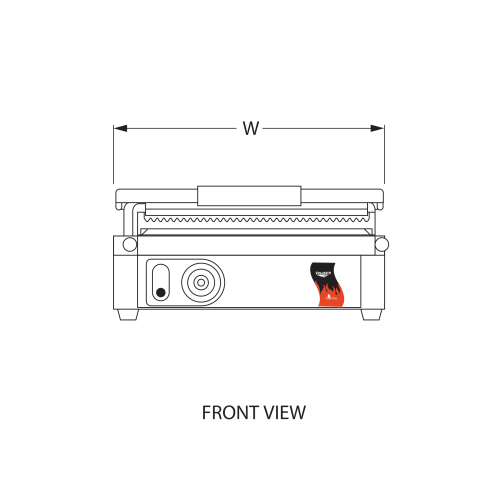

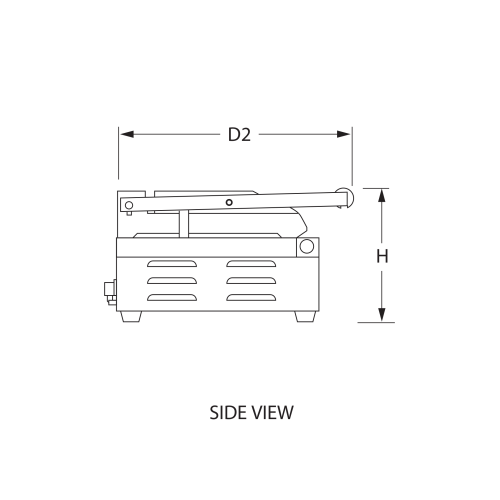

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16.125 x 15 x 8.062 |
| (W) Width (IN) | 16.12 |
| (D) Depth (IN) | 15 |
| (D2) Secondary Depth (IN) | 14.5 |
| (H) Height (IN) | 8.06 |
| Overall Dimensions (CM) | 41 x 38.1 x 20.6 |
| (W) Width (CM) | 41 |
| (D) Depth (CM) | 38.1 |
| (D2) Secondary Depth (CM) | 36.8 |
| (H) Height (CM) | 20.6 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 46 |
| Weight (KG) | 20.87 |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Cast Iron Plates |
| Construction Material 3 | Electrical Components |
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17 |
| Case Height | 10 |
| Case Length | 20.5 |
| Case Lot Cube (ft.) | 2.18 |
| Case Lot Weight (lbs.) | 46.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| THERMOSTAT TSI; TSA(ALL) (#43 | XTSA0007 | $285.10 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| BOTTOM ELEMENT(NEW TYPE) TSI70 | XTSI2035 | $106.40 |
| HINGE AXLE FRONT TSI7001 (#19 | XTSI2019 | $38.70 |
| HANDLE SPRING TSI7001/TSI8002 | XTSI2018 | $35.80 |
| RUBBER FOOT TSI7001(#3)TSI8002 | XTSI2004 | $4.20 |
| TOP ELEMENT(NEW TYPE) TSI7001 | XTSI2030 | $118.20 |
| DRIP TRAY TSI7001 (#8 9) | XTSI2005 | $51.20 |
| BOTTOM PLATE TSI7001 (#6) | XTSI2007 | $474.70 |
| WIRE BRUSH TSI7009/TSI8012 (# | XTSI0031 | $36.50 |
| HINGE AXLE REAR(WITH BOLTS) T | XTSI2021 | $110.10 |
| TOP PLATE TSI7001 (#5) | XTSI2006 | $388.70 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $50.20 |
| CABLE RESTRAINT (FMA SKA FFA) | XAA0012 | $11.70 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $9.94 |
| BRASS CLAMPING SADDLE TSI7001 | XTSI2023 | $19.40 |
| PLASTIC HANDLE GRIP TSI7001 (# | XTSI2017 | $42.80 |
| WIRING TUBE TSI7001/8002 | XTSI2036 | $114.50 |
| VOLLRATH CONTROL KNOB TSI7001/ | XTSI2015 | $19.40 |
| CONNECTOR BLOCK TSA(ALL) SAA(A | XTSA0005 | $20.60 |
| STEEL HANDLE TSI7001 (#16) | XTSI2016 | $101.10 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
