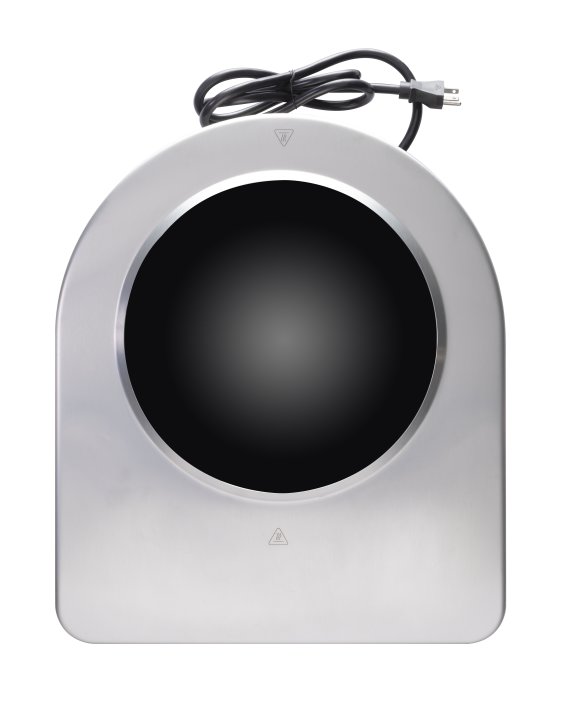

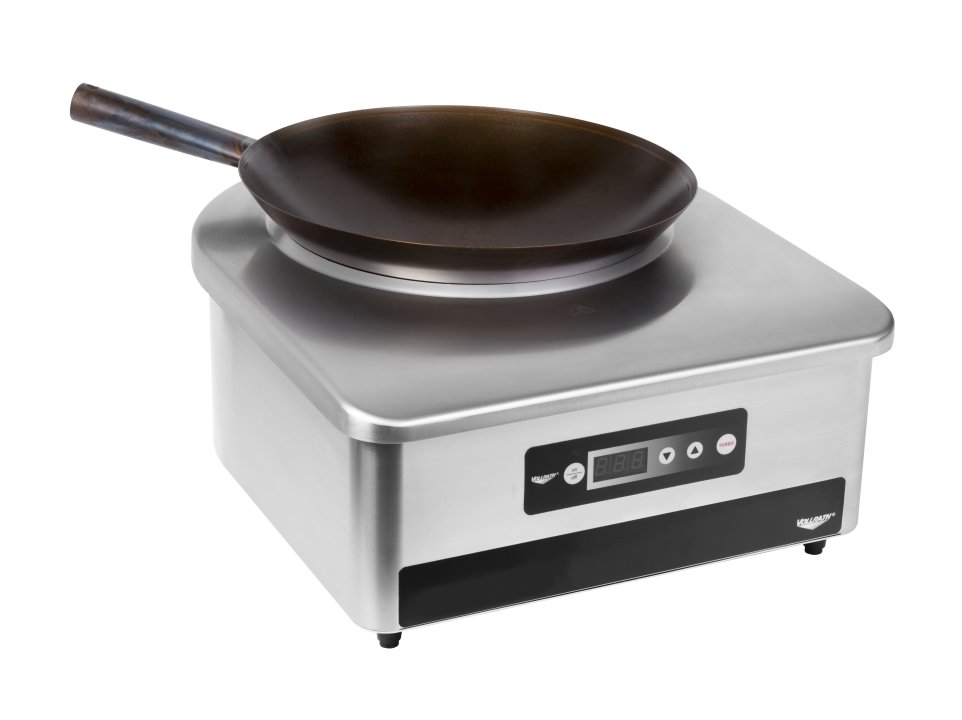

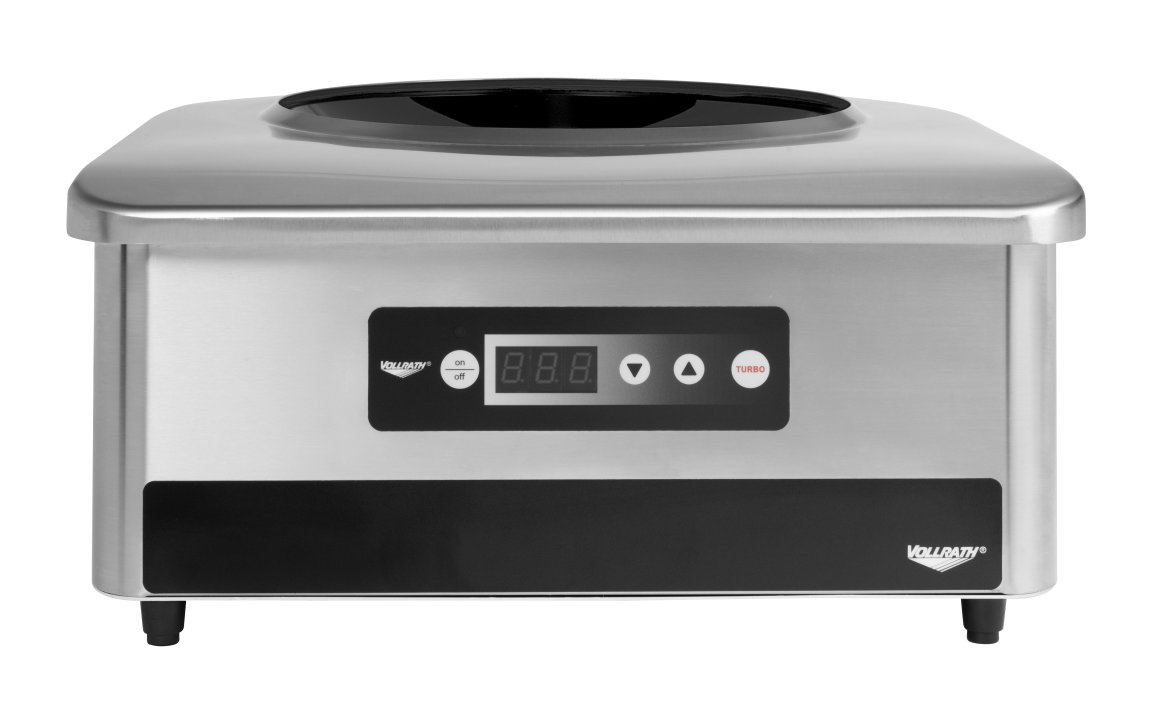

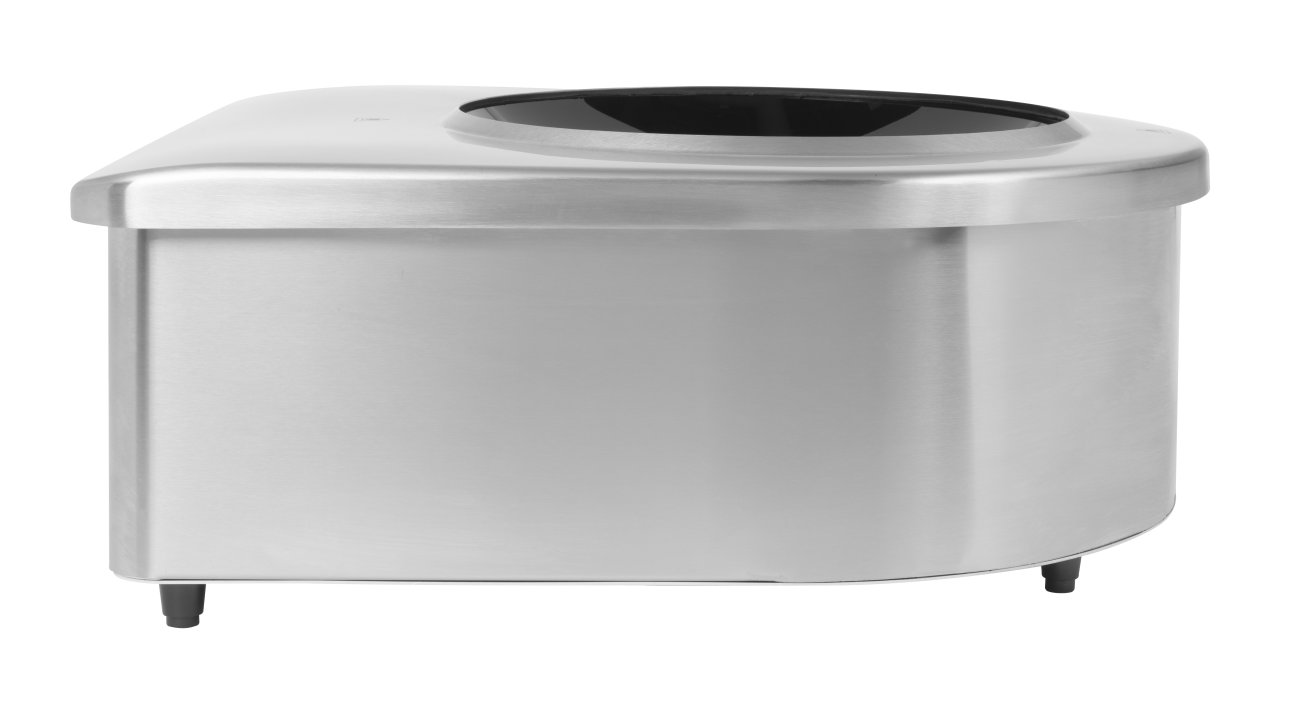

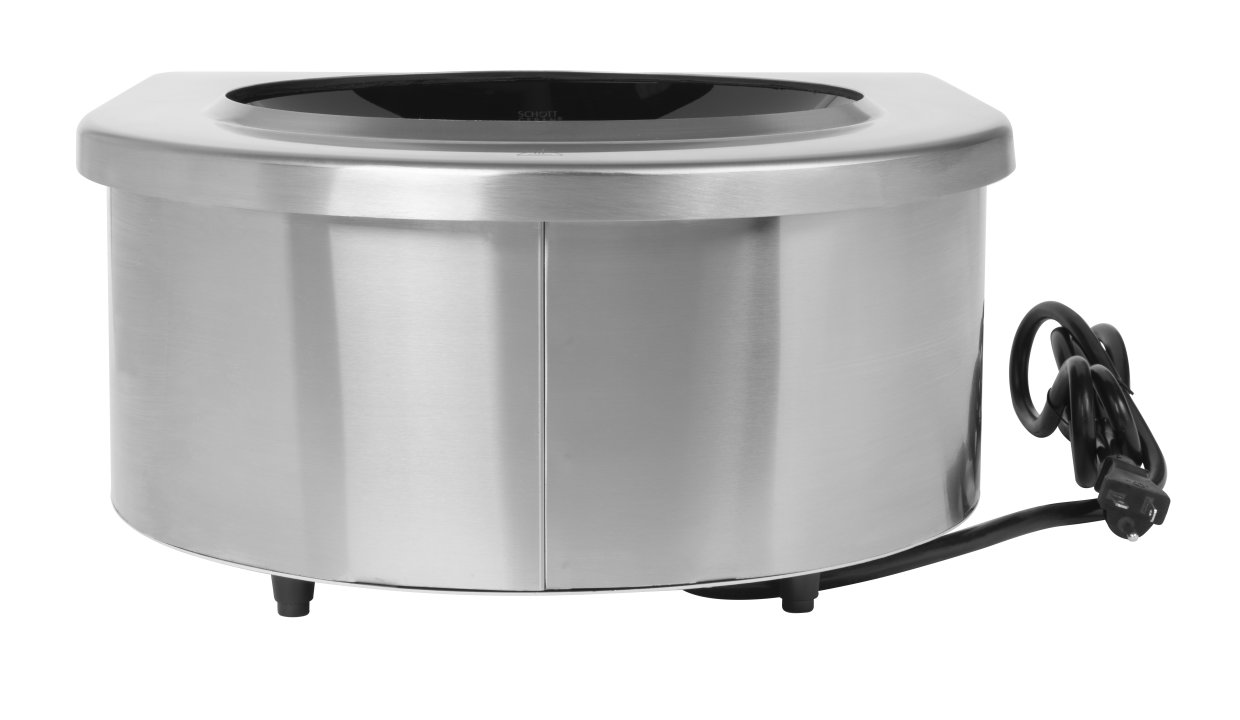

6958301 208- to 240-volt countertop induction wok range with 14-inch wok pan
The Vollrath® countertop induction wok range provides safe, high-efficiency heating with a gas-like performance.
This device complies with Part 18 of the FCC Rules
This symbol represents products that are certified to meet safe levels of radiofrequency radiation based on FCC regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
208- to 240-volt countertop induction wok range with 14-inch wok pan
The Vollrath® countertop induction wok range provides safe, high-efficiency heating with a gas-like performance. This impressive unit has 100 power settings for precise temperature control, as well as a turbo button that provides immediate heat. The digital controls are easy to use and clean, while the bright display keeps you informed. Several safety features extend the life of the unit and improve the overall experience. A 14-inch steel wok pan is included, providing everything you need for operation. This unit can be easily converted to a drop-in unit with the purchase of a stainless steel drop-in template.
Effortlessly prepare vegetables, stir-fry and other Asian cuisine
Overheat protection, small article detection, pan auto-detection, and empty pan auto-shutoff safety features extend the life of the unit
Can be used as a countertop unit, or a drop-in unit with optional drop-in accessory kit (6958301-DI) that includes stainless steel template and control box that enables wok to be installed as a drop-in appliance
14-inch wok pan (Item No. 58814) included
6-foot cord
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419019939 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 17 x 20.125 x 8.25 |
| (W) Width (IN) | 17 |
| (D) Depth (IN) | 20.12 |
| (H) Height (IN) | 8.25 |
| (H2) Secondary Height (IN) | 1.125 |
| (DB) Depth of Body (IN) | 19 |
| (HB) Height of Body (IN) | 7.125 |
| Overall Dimensions (CM) | 43.2 x 51.1 x 21 |
| (W) Width (CM) | 43.2 |
| (D) Depth (CM) | 51.1 |
| (H) Height (CM) | 21 |
| (H2) Secondary Height (CM) | 2.9 |
| (DB) Depth of Body (CM) | 48.3 |
| (HB) Height of Body (CM) | 18.1 |
Electrical
| Name | Value |
|---|---|
| Amps | 14.6 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| kW | 3 - 3.5 |
| Plug | NEMA 6-20P |
| Voltage | 208-240 |
| Watts | 3000-3500 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 34.5 |
| Weight (KG) | 15.65 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 20.75 |
| Case Height | 13 |
| Case Length | 23.75 |
| Case Lot Cube (ft.) | 4.8 |
| Case Lot Weight (lbs.) | 34.8 |
Product Accessories
| Name | Item # |
|---|---|
| 14-inch carbon steel induction wok pan | 58814 |
| Induction Wok Range Drop-In Accessory Kit | 6958301-DI |
Product Parts
| Name | Part # | Price |
|---|---|---|
| INDUCTION WOK CONTROL FASCIA | 25031-1 | $158.60 |
| 6-20P POWER CORD - TERMINATED | 251552-1 | $112.10 |
| STRAIN RELIEF/LOCK NUT | 352344-1 | $22.70 |
| DROP-IN WOK CONTROL BOX | 352558-1 | $240.60 |
| IND WOK REMOTE CONTROL FASCIA | 352567-1 | $57.70 |
| SPLIT CONTROL CABLE | 352571-1 | $187.20 |
| WOK EMI AND PWR BOARD KIT | 352565-1 | $1,584.80 |
